45′ Articulating Lift JLG

Horizontal Outreach: 25 ft / 7.62 m •Platform Capacity - Unrestricted: 550 lb / 249.48 kg •Platform Height: 45 ft / 13.72 m Key Features •Improved multifunction capability increases productivity •More durability and serviceability thanks to the new DuraTough hood design •Larger capacity at 550 lb
Rental Time:
  • 4 Hours: $209.00
  • 1 Day: $313.50
  • 1 Week: $940.50
  • 4 Weeks: $2,194.50
SKU: 130-280

Product Features

Manufacturer JLG
Model 450AJ

Performance

Axle Oscillation 4 in. / 0.1 m
Drive Speed – 4WD 4.25 mph / 6.84 km/h
Gradeability – 4WD 45 %
Platform Capacity – Unrestricted 550 lb / 249.48 kg
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius – Outside 15 ft 8 in. / 4.78 m

Dimensional Data

Ground Clearance 1 ft / 0.3 m
Machine Height 7 ft 5 in. / 2.27 m
Machine Length 21 ft 7 in. / 6.58 m
Machine Length – Transport 21 ft 7 in. / 6.58 m
Machine Width 7 ft 9 in. / 2.35 m
Platform Dimension A 2 ft 6 in. / 0.76 m
Platform Dimension B 6 ft / 1.83 m
Platform Height 45 ft / 13.72 m
Tailswing Zero
Tire Size 33/1550 x 16.5 Superwide

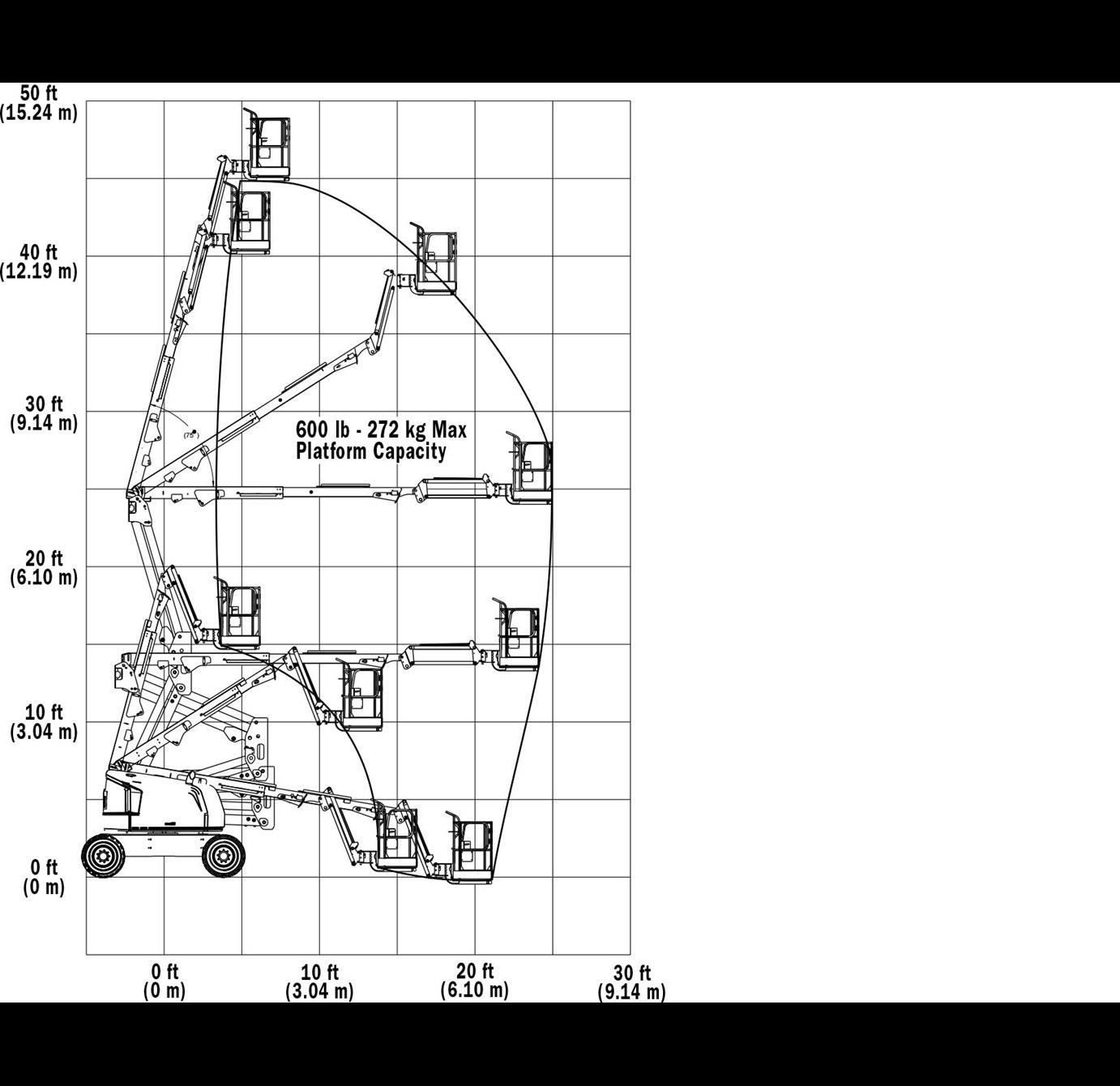

Reach Specifications

Horizontal Outreach 25 ft / 7.62 m
Platform Height 45 ft / 13.72 m
Up and Over Height 24 ft / 7.32 m
Vertical Jib Rotation 144 Degrees
