Articulating Lift 34′

Ideal for outdoor construction and industrial applications Genie engine-powered articulating Z™ booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
Rental Time:
  • 4 Hours: $171.01
  • 1 Day: $256.50
  • 1 Week: $769.50
  • 4 Weeks: $2,308.50
SKU: 130-275

Product Features

Manufacturer Genie
Model Z34/22

•Smooth control, durability and efficient power transmission ideal for rough terrain operation
•Two-speed hydraulic motors for optimum speed and torque
•Zero tailswing and nose swing in all positions allow excellent maneuverability in confined areas
•Ascent and descent along a vertical plane with or without boom retraction or extension
•2WD model: 0.68 – 3.0 mph (1.1 – 4.8 km/h) with 37% gradeability
•4WD model: 0.68 – 3.0 mph (1.1 – 4.8 km/h) with 45% gradeability

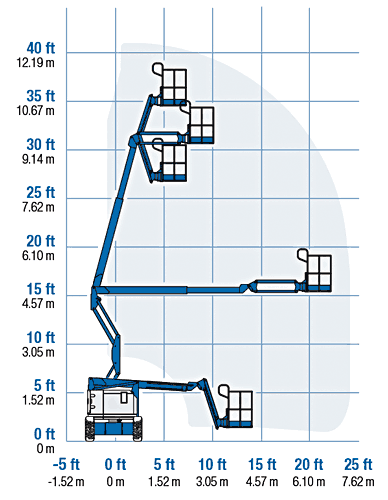

Working Height 40 ft 6 in (12.52 m)
Width 5 ft 8 in (1.73 m)
Horizontal Reach 22 ft 3 in (6.78 m)
Up & Over Clearance 14 ft 11 in (4.55 m)
Lift Capacity 500 lbs (227 kg)
